Net4x4 2.5" Air Suspension Lift to suit Porsche 955/957 Cayenne. VW Touareg 2002-2010 & Audi Q7 2006-2015

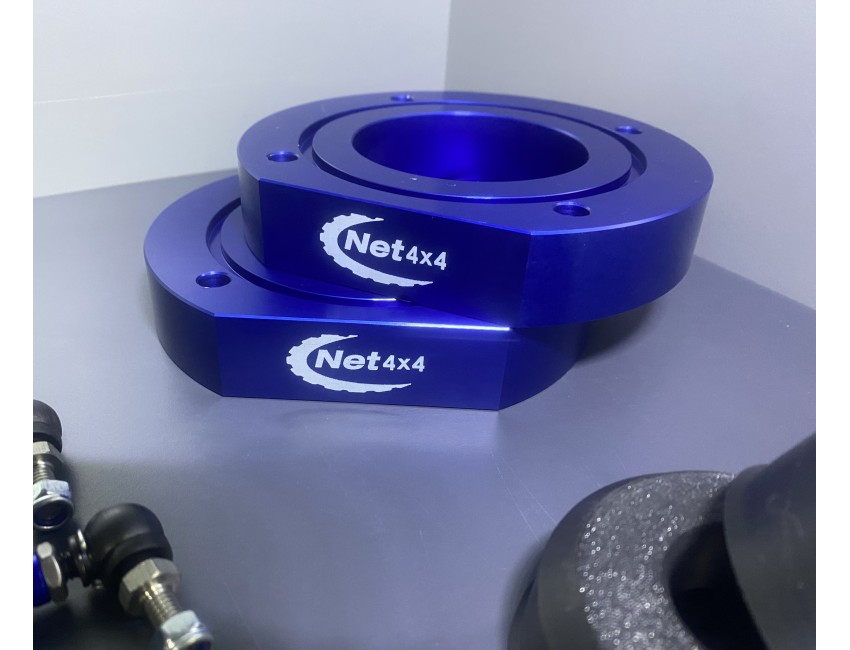

This kit uses out custom billet alloy spacers which mount above the airbag struts to raise the car giving it up to 2.5" inches of extra lift while still retaining the original air suspension factory adjustment so the car can easily be lowered back to factory height at its lowest setting or 5" higher at its highest setting. All alloy parts are anodized for corrosion protection.

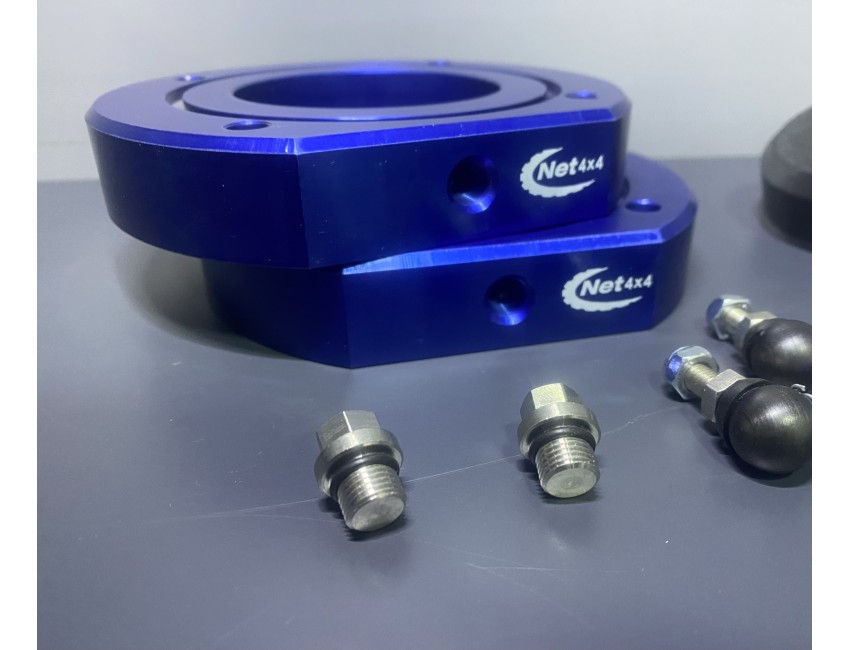

Our rear lift spacer has a air valve thread machined in it to relocate the air valve into the lift spacer eliminating the need to modify the top mount. Supplied with the kit is an air valve tool & new o-rings for the air valve if needed. The kit also has custom bolts with o-rings mounted on them to blank off the holes where the air valves are removed from the strut.

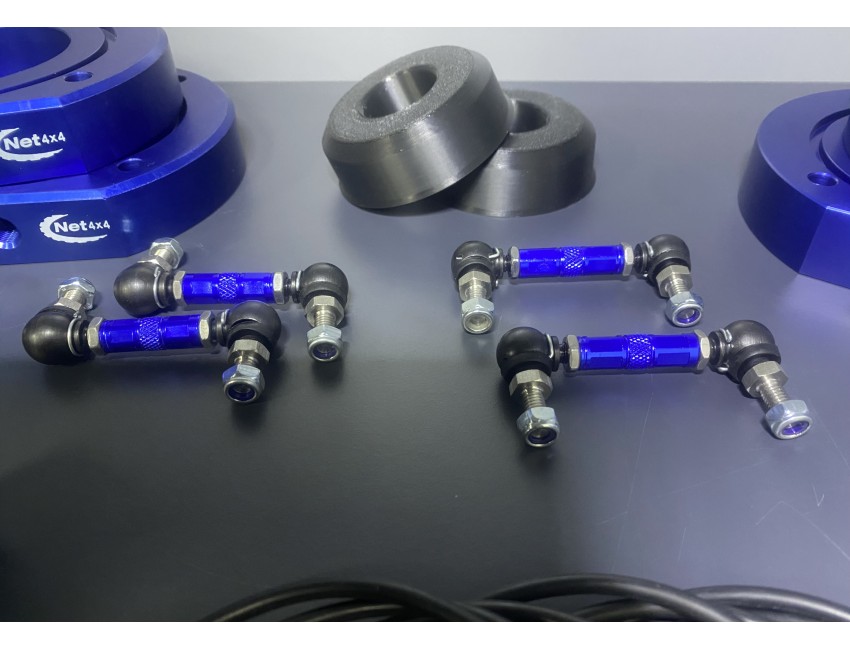

Adjustable stainless & anodized alloy level sensor link are supplied which are set to the correct height but being adjustable if any fine tuning to get the ride height perfect it can be done by adjusting the link length. The links have been made with a left & right thread in them so adjustments can be made in real time with out having to remove them from the car.

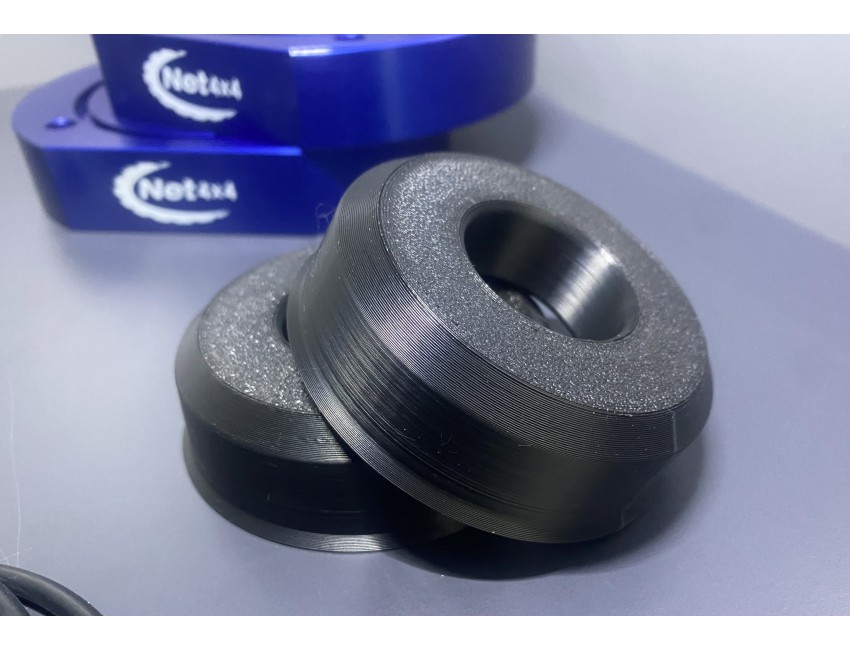

The air volume spacer is made from automotive grade ASA plastic which has a high durability in extremely conditions, UV & high heat resistant making it a better choice over ABS for this application. The air spacer has also been made with what we feel to be the best volume balance to give a more compliant smoother ride off-road while still retaining fantastic performance on road.

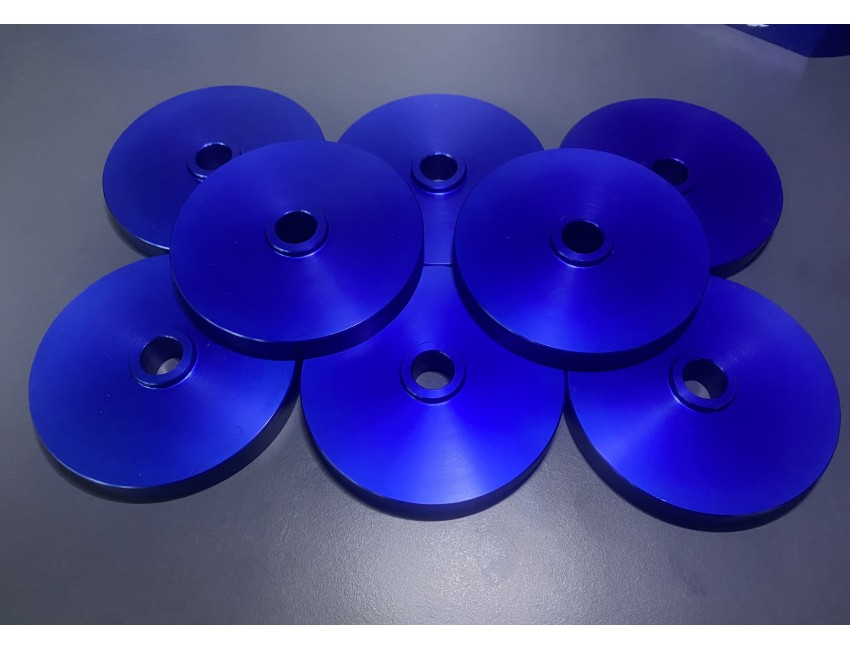

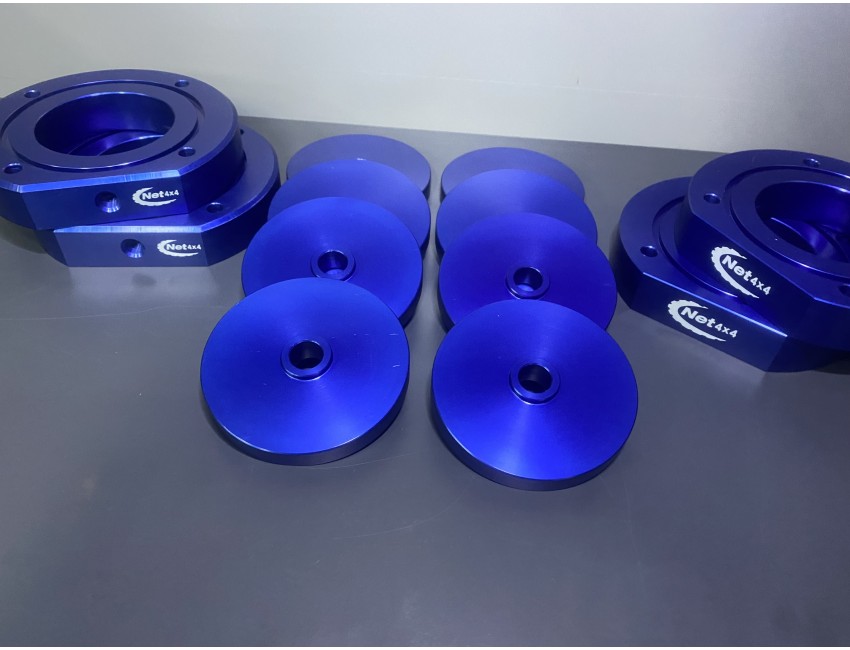

And because we want to protect our CVs the kit is supplied with 8 front & rear diffs lowering spacers to drop the CVs angles down to help protect them from binding damage.

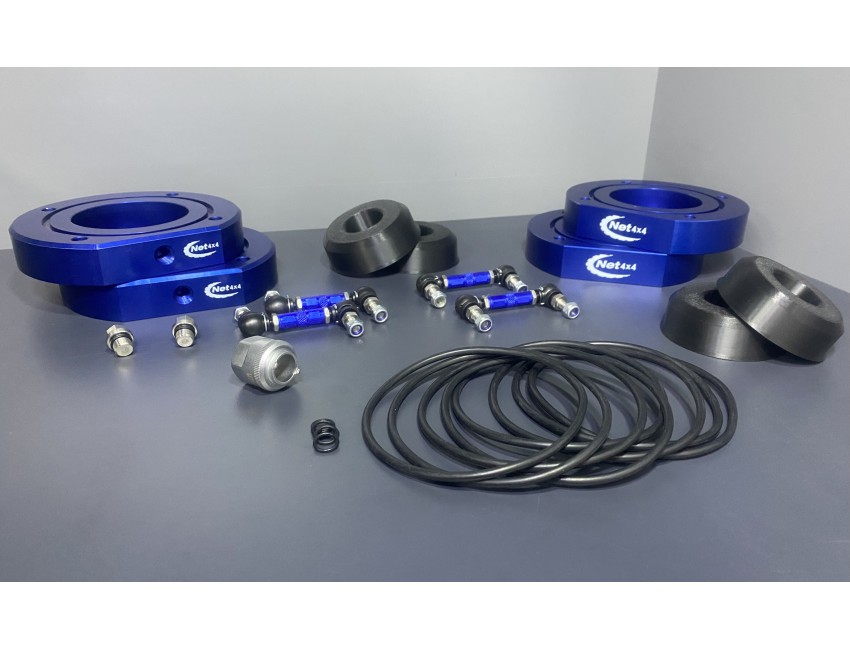

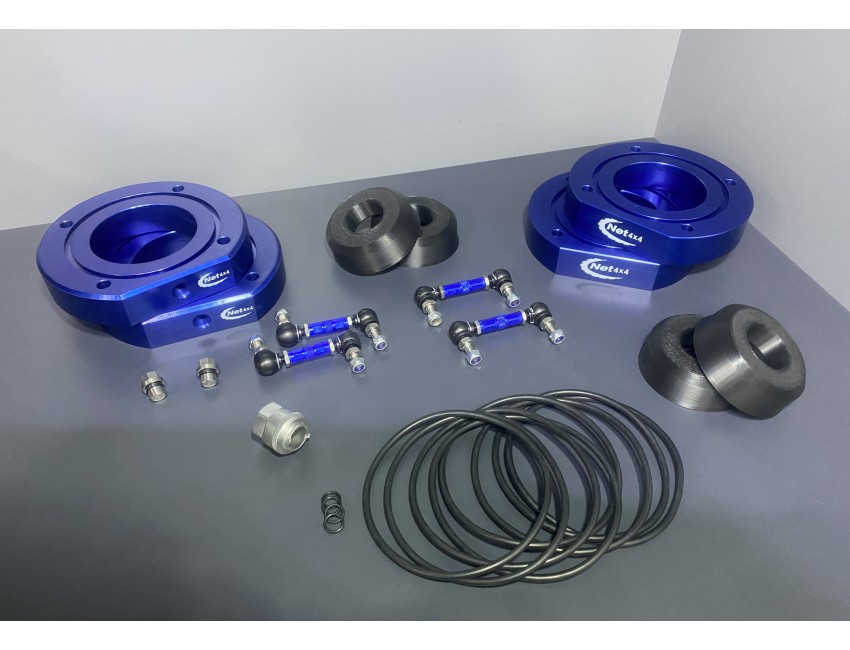

The Complete kit

2  Front Lift Spacers

2  Rear lift Spacers With Air Valve Relocation Thread

4  Air Volume Spacers

4  Adjustable Level Sensor Links

8  Diff Drop Spacers With centering spigot

8  Air Strut Mount O-Rings

8  50mm x M8 10.9 Grade Flange Bolts

2  Air Valve Relocation Blanking Bolts.

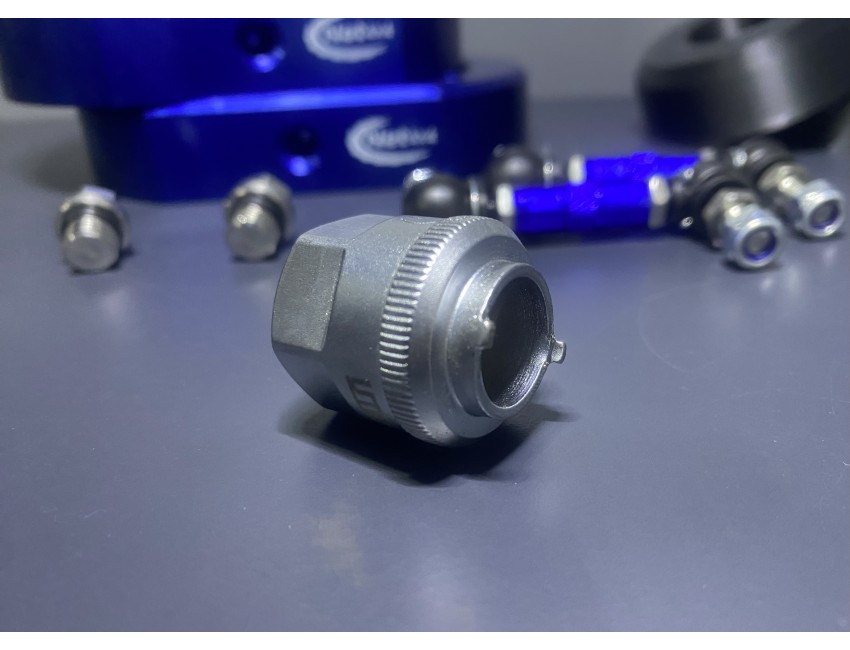

1  Air Valve Changing Tool.

4  Spare Air Valve O-Rings
